Forged Fittings
Metronex Supply INC – Trusted Manufacturer, Exporter & Supplier of Premium Quality Forged Fittings
"Leading Manufacturer of Forged Fittings, ANSI B16.9 Forged Threaded Fittings Supplier, Forged Elbows Pipe Fittings, Pipe Tee Exporter, Threaded Sweepolet Pipe Fittings Stockist, ANSI B16.28 Stainless Steel Forged Fittings Supplier, Forged Socket Weld Pipe Reducers, End Cap Fittings, Equal Tee Forged Pipe Fittings Supplier, Stub Ends Threaded Fittingsl Reducing Cross."
Metronex Supply INC is a leading manufacturer, exporter, and supplier of premium-quality forged fittings designed to meet the demanding requirements of various industries worldwide. We offer a comprehensive range of forged pipe fittings manufactured from high-grade stainless steel, carbon steel, alloy steel, duplex steel, and other specialty materials.
Our product portfolio includes Forged Threaded Fittings and Socket Weld Fittings such as Elbows, Tees, Couplings, Unions, Bushings, Plugs, Caps, Crosses, and Nipples. All products are manufactured in compliance with international standards including ASME, ANSI, ASTM, MSS-SP-79, MSS-SP-83, MSS-SP-95, and MSS-SP-97.
With a commitment to quality, precision engineering, and customer satisfaction, Metronex Supply INC serves industries such as Oil & Gas, Petrochemicals, Power Generation, Chemical Processing, Water Treatment, Marine, and Construction. Every forged fitting undergoes stringent quality testing to ensure durability, corrosion resistance, dimensional accuracy, and reliable performance under high-pressure and high-temperature applications.
- High-quality raw materials
- High dimensional accuracy
- Customized sizes and specifications
- Leak-proof performance
- Easy installation and maintenance
- Excellent pressure handling
Forged Fittings Specification
| Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
|---|---|
| Size | 1/8” NB to 4” NB (Socket Weld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld Fittings, Screwed/Threaded Fittings, NPT, BSP, BSPT Fittings |
| Forms | 45 Degree Socket Weld Elbow, 90 Degree Socket Weld Elbow, 180 Degree Socket Weld Elbow, 45 Degree Threaded Forged Elbow, 90 Degree Forged Threaded Elbow, Socket Weld Tee, Socket Weld Coupling, SS Socket Weld Cross, SS Socket Weld Plug, SS Socket Weld Bushing, SS Forged Socket Weld Cap, Socket Weld Union, Socket Weld Half Coupling, Socket Weld Full Coupling, Reducing Coupling, Reducer Insert, Tee Straight, etc. |
Types of Forged Fittings
Forged 45 Degree Elbow
Forged 90 Degree Elbow

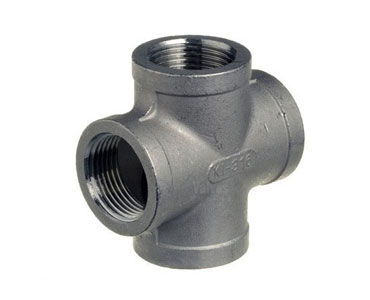

Forged Socket Weld Cross

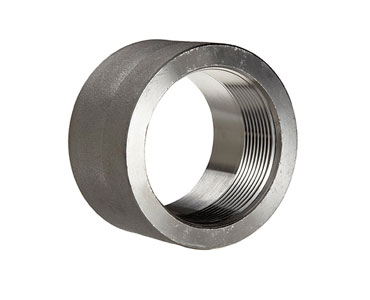

Forged Socket Weld Half Coupling

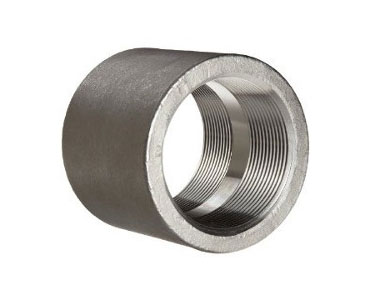

Forged Socket Weld Full Coupling
Forged Socket Weld Tee

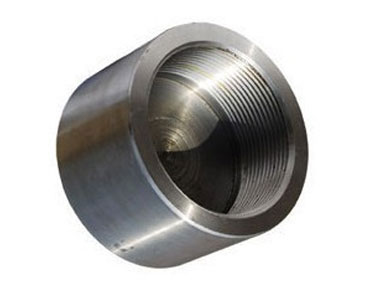

Forged Socket Weld Cap

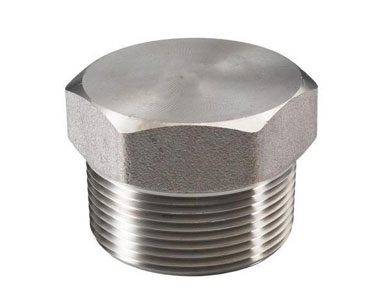

Forged Threaded / Screwed Hex Plug

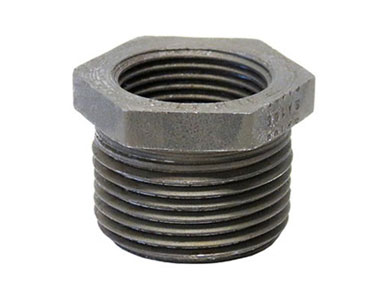

Forged Threaded Bushing

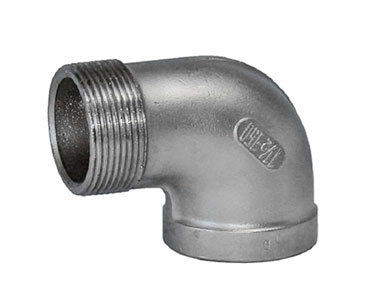

Forged Threaded Street Elbow

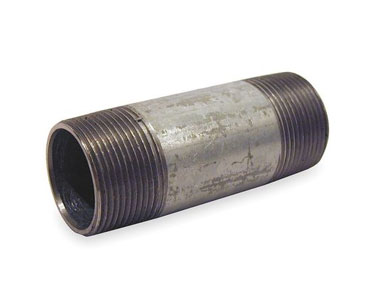

Threaded / Screwed Pipe Nipple

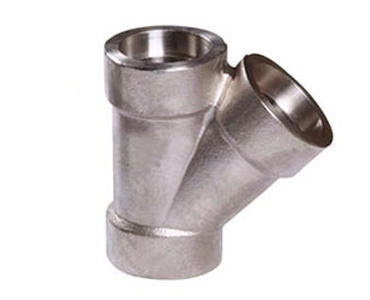

Socket Weld Lateral Outlet
Forged Threaded / Screwed Union

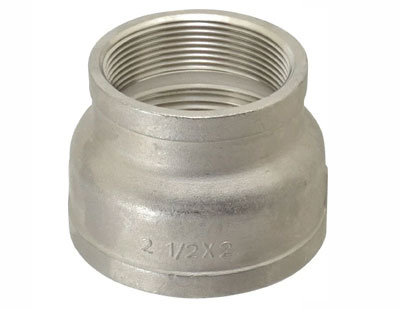

Forged Threaded Eccentric Reducer

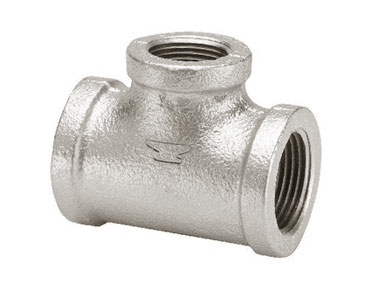

Forged Threaded Reducing Tee
Forged Socketweld Pipe Elbow
Stainless Steel Forged Fittings
| Standards | ASTM A182 & ASME SA182 |
| Grades | F201, F202, F301, F302, F304, F304L, F309, F310, F316, F316L, F316LN, F316Ti, F317L, F321, F347, 405, 409, 410, 420, 430, 440C, F904L. |
Duplex & Super Duplex Steel Forged Fittings
| Standards | ASTM A182 & ASME SA182 |
| Grade | 2205 (F51, S31803 / F60, S32205), SMO254 (F44, S32154), 2507 (F53, S32750 / F55, S32760), Ferralium 255 (F61 S32550). |
Carbon Steel Forged Fittings
| Standards | ASTM A105 / A350 |
| Grades | Gr. LF2, LF3, ASTM A694 – F42, F46, F48, F50, F52, F56, F60, F65, F70. |
Alloy Steel Forged Fittings
| Standards | ASTM A182 & ASME SA182 |
| Grades | F1, F5, F9, F11, F12, F22, F91 |
Nickel Alloy Forged fittings
| Standards | ASTM B564 / A182 |
| Grade | Nickel Alloy 200, Nickel Alloy 201 |
Inconel/Incoloy Forged fittings
| Standards | ASTM B366 / ASME SB366 |
| Grades | Inconel 600, 601 ,625,718, Incoloy 800 / 800H / 800HT, 825, 925,330/ SS 330/ Ra 330 |
Monel Forged fittings
| Standards | ASTM B366 / ASME SB366 |
| Grades | Monel 400, Monel K500 |
Hastelloy Forged fittings
| Standards | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Grades | Hastelloy C22,276,B2,B3,X |
Titanium Forged fittings
| Standards | ASTM B381 & ASME B381 |
| Grade | F2, F5 (Ti6AI4V), F7 |
Mild Steel Forged Fittings
| Standards | IS, BS, ASTM,ANSI B16.11, S/W & SCRD |
Manufacturing Standards of Forged Fittings
| ASTM/ASME | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Socketweld/Threaded Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Socketweld/Threaded Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Forged Fittings Class, Size & Wall Thickness
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps |
1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness |
SCH 80 / XS | SCH 160 | XXS |
Forged Fittings Dimension Chart
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | ASME B16.9 Elbows and Tees | ASME B16.9 180 Deg Return Bends | ASME B16.9 180 Deg Return Bends | ASME B16.9 180 Deg Return Bends | ASME B16.9 Reducers | ASME B16.9 Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Soket Weld Fittings Size Range & Dimensions
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
