Valves
Metronex Supply INC – Trusted Manufacturer, Exporter & Supplier of Industrial Valves
" Industrial Valves Manufacturer, Valve Manufacturer, Industrial Valve Supplier, Valve Exporter, Ball Valve Manufacturer, Gate Valve Manufacturer, Globe Valve Supplier, Butterfly Valve Exporter, Check Valve Manufacturer, Industrial Flow Control Valves"
Metronex Supply INC manufactures and provides high-quality industrial valves to the domestic and international markets. As part of our production process, we follow both national and international quality standards such as AISI, BS, IS, ASME, and ANSI. A valve is a mechanical device that opens, closes, or partially obstructs multiple channels to regulate, control, and guide the flow of fluid.
When regulating the flow of a gas or fluid during a process, valves are the tools employed. The pathways can be opened, closed, or obstructed with them. In general, a fluid flows from greater pressure to lower pressure, however we can alter the flow's route as we choose by using valves. Valves come in a variety of forms, including solenoid, motor, hydraulic, pneumatic, and manual. Every valve performs a different purpose. Different types of valves exist: manually operated and automated.
Our valves had wide spectrum of users in the Process and Chemical, Refineries & Petrochemicals, Fertilizers, Drugs and Pharmaceuticals, Thermal Power Stations, Nuclear and Atomic Power Stations, Textiles, Dyes and Intermediates, Paints & Varnishes, Sugar, Breweries and Distilleries and more.
- Superior Quality Materials
- International Standards Compliance
- Excellent dimensional accuracy
- Easy installation
- Suitable for high-pressure applications
- Competitive Pricing
- Reduced maintenance costs
- Custom Manufacturing Solutions
Valves Specification
| Standard | API 600/BS1414, API 598/BS EN 12266-1, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34 |
| Bolt / Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Size | 1/8 to 1”, Custom Sizes available on request |
| Working Pressure | Up to 6000 PSIG, valves are also available that can handle higher pressure |
| End Connection | Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female, Female to Female |
| Temperature Rating | PTFE 450F,(232C)/Grafoil 700 F(371C) |
| Pressure Rating | 150#,300#,600#,800#,1500# |

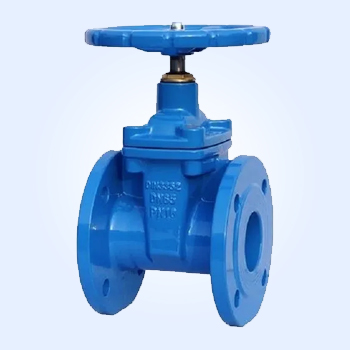

Gate Valve
For water delivery systems, a gate valve is the most typical type of valve. It functions as a linear-motion isolation valve and can stop or start the flow. The closure element on a gate valve slides into the flow stream to provide shutoff, hence the term "gate valve." Gate valves can be divided into two main types: Parallel and wedge-shaped. The parallel gate valves use a flat gate between two parallel seats, and a popular type is the knife gate valve designed with a sharp edge on the bottom of the gate.
| Standard | BS 1414/ BS 5352/ API 600/ API 602 / API 6D / ASME B 16.34 / API 598 |
| Stainless Steel (BAR ST0CK) | RATING: 150#/300# SIZE: 8 MM TO 100 MM |
| Cast Carbon Steel/Stainless Steel/Alloy Steel | RATING: 150#/300#/600#/900# SIZE: 15 MM TO 600 MM |
| Forged Carbon Steel/Stainless Steel | RATING: 150#/300#/800#/1500# SIZE: 15 MM TO 50 MM |
| Cast Iron | RATING: 125#/150# SIZE: 25 MM TO 600 MM |
| Forged Range | Cast Range | |
| DESIQN (Mfg.) STD. | BS 5352 | BS 1868/API 6D |
| TEST (Inspection) STD. | BS 6755 | BS 6755/API 6D |

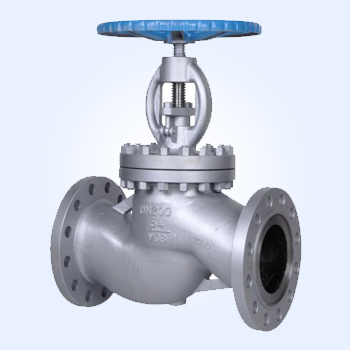

Globe Valve
Globe valves, in contrast to gate valves, can be used to control flow or pressures as well as completely stop flow. It may occasionally be used as a check valve or a pressure relief valve. The globe valve has a significantly higher pressure loss in the fully open position when compared to a gate valve or ball valve. Typically, when installing globe valves, the inlet should be placed beneath the valve seat. The valve can be set up so that the flow enters over the seat's top and passes through it for severe throttling applications.
| Standard | BS 5352/ BS 6755 / BS 1873 / BS6755 /ASME B 16.34 / DIN3356 |
| Stainless Steel (BAR ST0CK) | RATING: 150#/300# SIZE: 8 MM TO 100 MM |
| Cast Carbon Steel/Stainless Steel/Alloy Steel | RATING: 125#/150# SIZE: 25 MM TO 600 MM |
| Forged Carbon Steel/Stainless Steel | RATING: 150#/300#/800#/1500# SIZE: 15 MM TO 50 MM |
| Cast Iron | RATING: 150#/300#/600#/900# SIZE: 15 MM TO 40 MM |
| Forged Range | Cast Range | |
| DESIQN (Mfg.) STD. | BS 5352 | BS 1873 /DIN 3356 |
| TEST (Inspection) STD. | BS 6755 | BS 6755 |

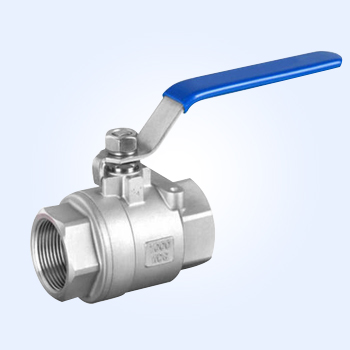

Ball Valve
Ball valves regulate flow by sandwiching a metal ball with a hole through its centre between two seats. Ball valves are capable of throttling gases and vapours and are particularly helpful in low flow situations. They are used in many hydrocarbon process applications. Ball valves come in four different main categories: full port, normal port, reduced port, and v port.
| Body | Two Piece, No Welding |
| Size | 1/4", 3/8", 1/2", 3/4", 1" |
| Material | Different grades of materials like SS 304 / SS 316 / SS 316 L - Nace / Hastelloy C / Monel / Inconel offered on request |
| End Connections | NPT / BSPP / BSPT / METRIC |
| Stem | Rolled Stem Threads for Enhanced Cycle Life |

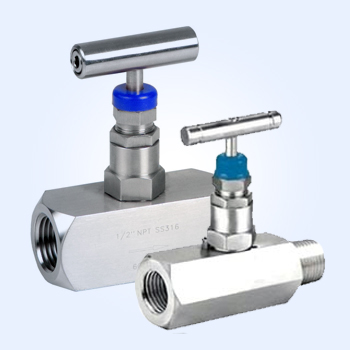

Needle Valve
A needle valve is a type of valve that can be used to control the flow of a substance through an appliance or system, typically either water or gas. The presence of a tiny plunger that resembles a needle is the value's distinctive feature. A needle valve is a particular kind of valve having a tiny port and a plunger with a needle-like thread. Although it is often only capable of relatively low flow rates, it allows precise flow modulation. Needle valves are smaller in size. So, there is not an issue of space during its installation. Throttling even with less volume of fluid is possible with this valve.
| BODY (WITH INTEGRAL SEAT) | SS, BRASS, CARBON STEEL, MONEL |
| NOMIAL SIZE RANGE | 1/4" to 1" (Female / Female BSP and BSPT), 3/8" to 1" (Female / Female NPT) and 1/4" to 1/2" (Male / Female BSPP). |
| GLAND PACKING | PTFE, GRAFOIL. |
| TEMPARTURE | -450 to 2500C |
| WORKING PRESSURE | UP to 10,000 Psig |
| ORIFICE DIA | 1/8” (3mm) to ½ “(12.7mm) |
| HANDLE | CARBON STEEL, ALUMINIMUM OR S.S |
| END Connections | SCREWED FEMALE/ MALE, TUBE END, SOCKETWELD, BUTTWELD & FLANGEND. |
| BODY | 1 Piece, 2piece union bonet type with lapped seat. |
| STEM | Choice of replacement stem tip, v point, regulating or blunt stems for exact flow requirements. |
| NEEDLE | PRECISION GROUND, LAPPED TIP FOR PERFECT METAL TO METAL SAELING. |
| LUBRICATION | Anti-seize lubricants on stem threads for easy operations & long life. |
| GLAND TESTING | Adjustable. |
| TESTING | EACH VALVE IS 100% TESTED TO ENSURE LEAK TIGHTNESS AT SEAL SHELL, & GLAND. |

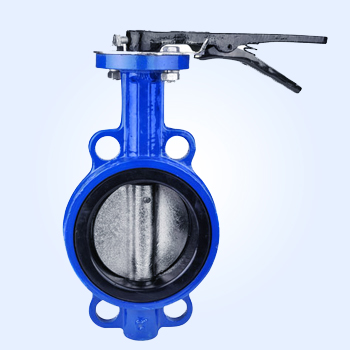

Butterfly Valve
The butterfly valve is categorised as a quarter-turn valve. The butterfly valve functions similarly to a ball valve for fast shutdown, but unlike a ball valve, it may also open and close gradually. Due to this distinction, the disc is always a part of the flow and permits a reduction in pressure. Pipelines use butterfly valves, a class of rotational motion valves with a quarter-turn, to stop the flow of fluid. Butterfly valves are frequently mentioned as having the ability to control flow. These valves primary uses in the chemical, pharmaceutical, and food industries, as well as in the regulation of water flow in dams and hydroelectric generating plants.
| Standard | API 609/ BS 5152/ IS 13095 |
| Stainless Steel | DESIGN : Offset Disc Operation: Levermanual Gear/ Motorised Gear ENDS: Water Type SIZE : 40 MM T0 300 MM |
| Cast Carbon Steel | OPERATION: Lever/Manual Gear DESIGN: Sureseal/Replacable/ Rubber Lining ENDS: Water Type SIZE: 40 MM TO 500 MM |
| Forged Carbon Steel | DESIGN: Offset Disc OPERATIOPN: Lever/Gear(ISI Marked) ENDS: Water Type/ Double Flanged/ Ligged Type SIZE: 350 MM TO 1200 MM |
| Cast Iron | DESIGN: Sureseal/Replacable/ Rubber Lining ENDS: Water Type SIZE: 40 MM TO 300 MM |
| Mfg. STD. | BS 3155/AWWA C 504/API 609/ IS13095 |
| TEST STD. | BS 5155/BS6755 |
Standard Specification of Valves
| Valve Type | D & M Standard | Connection End | Operator |
|---|---|---|---|
| Gate Valve | API 600,API 6D,API 603,API 602,API 6A,ASME B16.34,DIN1984,JIS2071 | Flange, BW, SW, Thread | Handwheel, Worm Gear, Pneumatic Actuator, Electric Actuator |
| Ball Valve | API 6D,API 608,BS5351,ASME B16.34,DIN1983,JIS B2071 | Flange, BW, SW, Thread | Lever, Worm Gear, Pneumatic Actuator, Electric Actuator |
| Check Valve | API 6D,API 594,BS 1868,ASME B16.34,DIN13709,JIS B2071 | Flange, Wafer, Thread | – |
| Globe Valve | BS 1873,ASME B16.34,EN 588,DIN 3202,JIS 5752 | Flange, BW, SW, Thread | Handwheel, Worm Gear, Pneumatic Actuator, Electric Actuator |
| Butterfly Valve | API 609,MSS SP-68,DIN593,JIS B2071 | Flange, Lug, Wafer | Handle, Worm Gear, Pneumatic Actuator, Electric Actuator |
