Metronex Supply INC – Manufacturer, Exporter & Supplier of Premium Pipes & Tubes.

" Square Pipes, Boiler Tubes, Rectangular Pipes, Hollow Pipes & Tubes, Welded Tubes Dealers, Hot Finished Seamless Tubes, Steel Pipes & Tubes, EFW Piping & Tubing Manufacturer, Latest Price of Pipes & Tubes, Threaded Pipes & Tubes, Hastelloy Pipes & Tubes, Heat Exchangers Tubes, Super Duplex Pipes & Tubes, Monel Pipes & Tubes Supplier."

Metronex Supply INC is one of the leading Stockholder, Suppliers & Exporters of Pipes & Tubes in different shapes and sizes and with different specifications as per the customers’ requirement. These Pipes & Tubes are characterized by high durability, resistance to corrosion, flawless finish and complete reliability in service. We produce these seamless pipes tubes in India by employing premium raw materials and adhering to strict industrial quality standards.

Our warehouse is filled with a vast array of pipes and tubes consisting of different materials such as carbon steel, alloy, monel, inconel, titanium, aluminum, stainless steel, carbon steel, carbon steel, and so on. There exist multiple grades of stainless steel tubes, including 304, 309, 310, 316, 317, 321, 347, 409, 410, 430, 439, 446, and 904L stainless steel pipes and tubes.

Many sectors, including oil and gas, pharmaceuticals, water treatment plants, desalination plants, sugar and food processing, chemical processing, water supply, and everyday applications, are served by the heavy wall thickness pipe that is available in India. Being a reputable provider and exporter, we manufacture all of our products in accordance with Indian and international standards, including AISI, ASME, ASTM, ANSI, BS, IS, DIN, and JIS.

Excellent mechanical strength
High strength and durability
Leak-proof performance
Easy maintenance and inspection
High corrosion resistance
Long service life
Reduced maintenance costs
Cost-effective piping solutions

Pipes & Tubes Specification

Dimensions	ASTM, ASME and API
Pipe Specification	ASTM A312, A358 / ASME SA312, SA358
Tube Specification	ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554
Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB
Seamless Pipes & Tubes Size	1/8" NB - 24" NB
Welded Pipes & Tubes Size	1/2" NB - 24" NB
ERW Pipes & Tubes Size	1/8" NB - 36" NB
EFW Pipes & Tubes Size	6" NB - 100" NB
Schedule	SCH5, SCH5S, SCH10, SCH10S, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Form	Seamless Pipes, Round Pipes, Custom Pipes, “U” Shape, Hydraulic Pipes, U Shape Pipe, Pan Cake Coils, ERW Pipe, EFW, Pipe, H-SAW Pipe, L-SAW Pipe, Square Pipe, Coiled, Hex, Honed, Rectangular Pipe.
Length	Single Random, Double Random & Custom Cut Length
End	Plain End, Beveled End, Treaded End
Types	Seamless / ERW / Welded / Fabricated Pipes

Types of Pipes & Tubes

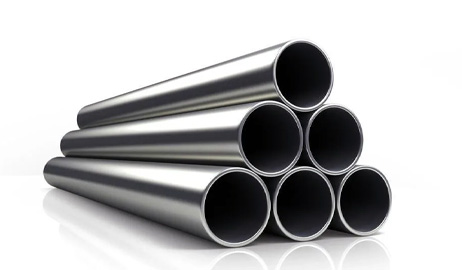

Seamless Pipes & Tubes

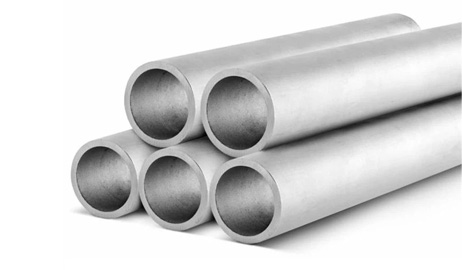

Welded Pipes & Tubes

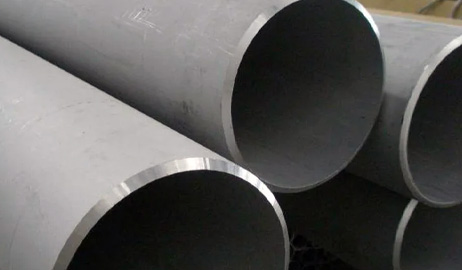

ERW Pipes & Tubes

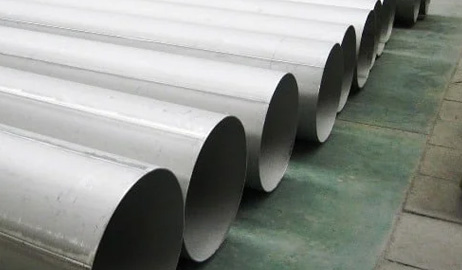

EFW Pipes & Tubes

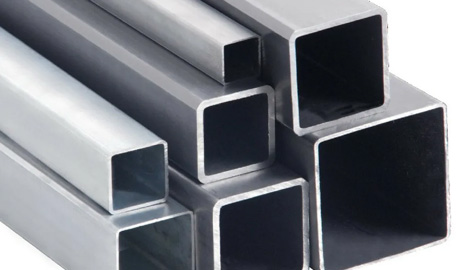

Square Pipes & Tubes

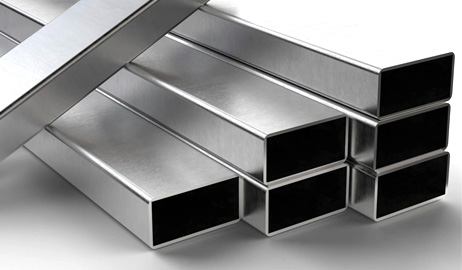

Rectangular Pipes & Tubes

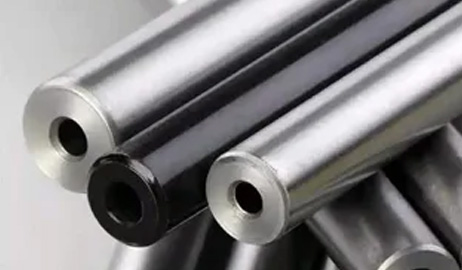

Hydraulic Pipes & Tubes

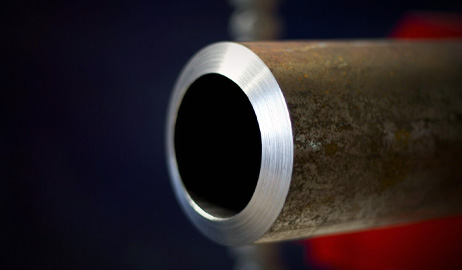

Bevel End Pipes & Tubes

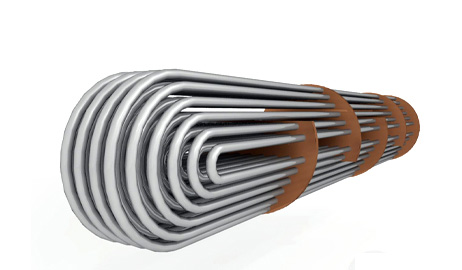

Heat Exchanger Tubing

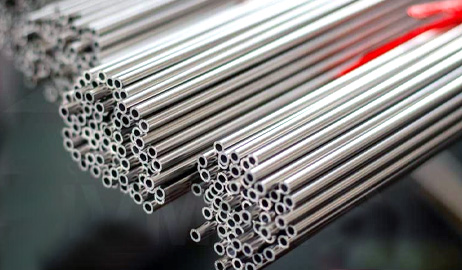

Capillary Tubing

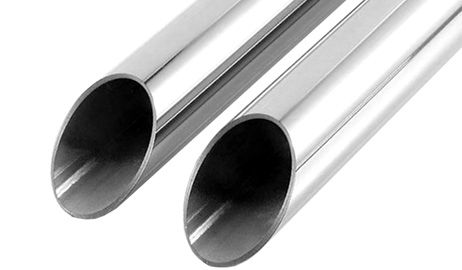

Electro Polished Pipes & Tubes

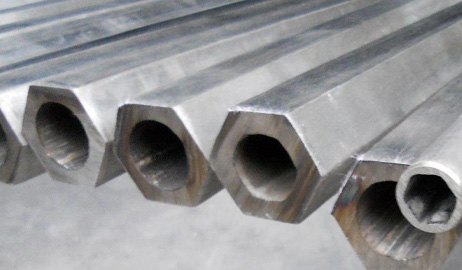

Hexagonal Pipes & Tubes

Stainless Steel Pipes & Tubes

Standards	ASTM A312 / A213 / A269 / A358 / A778
Grades	TP 201, 202, 301, 302, 304, 304L, 309, 310, 316, 316L, 316LN, 316Ti, 317L, 321, 347, 405, 409, 410, 420, 430, 440C, 904L, AL-6XN (N08367).

Alloy Steel Pipes & Tubes

Standards	ASTM A335 / A213
Grades	P11, P12, P22, P5, P9, P91, T11, T12, T22, T5, T9, T91.

Carbon Steel Pipes & Tubes

Standards	ASTM A106 / A53 / A179 / A333 / A210
Grades	Gr. B, API 5L X42/X46/X52/X56/X60/X65/X70 PSL-1 / PSL-2, Gr, 3, 6, IS 1239, IS 3589, Boiler Tube – BS 3059 – Gr. 320, 360, Gr. A1, BS 6323.

Duplex & Super Duplex Steel Pipes & Tubes

Standards	ASTM A789, A790, A928
Grades	2205 (S31803 / S32205), SMO254 (S32154), 2507 (S32750 / S32760), Ferralium 255 (S32550), SMO 654 (S32654).

Nickel Alloy Pipes & Tubes

Standards:	ASTM B 161 ASME SB 161 / ASTM B729 ASME SB729
Grade:	200 (N02200), 201 (N02201), Alloy 20 (N08020).

Monel Alloy Pipes & Tubes

Standards:	ASTM B165 ASME SB165 / ASTM B725 ASME SB725
Grade:	400 (N04400), 500 (N05500).

Inconel Pipes & Tubes

Standards:	ASTM B167,B444, B407, B423, B677
Grade:	600 (N06600), 601 (N06601), 625 (N06625), 718 (N07718), 800 (N08800), 800H (N08810), 800HT (N08811),– 825 (N08825), 904L (N08904).

Copper Alloy Pipes & Tubes

Standards:	ASTM B111 ASME SB111 / ASTM B466 ASME SB466
Grade:	Commercial, ETP, OFE, CuNi 90/10 (C70600), CuNi 70/30 (C71500), Brass, Naval Brass, Aluminium Bronze, Admiralty Brass.

Hastelloy Pipes & Tubes

Standards:	ASTM B622 ASME SB622 / ASTM B619 ASME SB619
Grade:	C726 (N10276), C4 (N06455), C22 (N06022), C2000 (N06200), X (N06002), B2 (N10665), B3 (N10675).

Titanium Pipes & Tubes

Standards:	ASTM B338 / B861 / B862
Grade:	2, 5 (Ti6AI4V), 7.

Cupro Nickel Pipes & Tubes

Standards:	ASTM B 466 ASME SB 466 / ASTM B 467 ASME SB 467
Grade:	Cupro Nickel 90 / 10 & Cupro Nickel 70/30

Copper Pipes & Tubes

Standards:	ASTM B 280 ASME SB 280 / ASTM B 68 ASME SB 68
Grade:	C12200

Mild Steel Pipes & Tubes

Grade:	IS – 1239 (Part -1) 2004, Equivalent to BS – 1387 / 1985

Pipes & Tubes Dimensions Standard

Nominal Pipe Size		Outside Diameter (mm)	Nominal Wall Thickness Schedule
NPS	DN	OD	SCH5s	SCHl0s	SCH 10	SCH 20	SCH 30	SCH40s	SCH STD	SCH 40	SCH 60	SCH80s	SCH XS	SCH 80	SCH 100	SCH 120	SCH 140	SCH 160	SCH XXS
1/8	6	10.3		1.24				1.73	1.73	1.73		2.41	2.41	2.41
1/4	8	13.7		1.65				2.24	2.24	2.24		3.02	3.02	3.02
3/8	10	17.1		1.65				2.31	2.31	2.31		3.20	3.20	3.20
1/2	15	21.3	1.65	2.11				2.77	2.77	2.77		3.73	3.73	3.73				4.78	7.47
3/4	20	26.7	1.65	2.11				2.87	2.87	2.87		3.91	3.91	3.91				5.56	7.82
1	25	33.4	1.65	2.77				3.38	3.38	3.38		4.55	4.55	4.55				6.35	9.09
1 1/4	32	42.2	1.65	2.77				3.56	3.56	3.56		4.85	4.85	4.85				6.35	9.70
1 1/2	40	48.3	1.65	2.77				3.68	3.68	3.68		5.08	5.08	5.08				7.14	10.15
2	50	60.3	1.65	2.77				3.91	3.91	3.91		5.54	5.54	5.54				8.74	11.07
2 1/2	65	73	2.11	3.05				5.16	5.16	5.16		7.01	7.01	7.01				9.53	14.02
3	80	88.9	2.11	3.05				5.49	5.49	5.49		7.62	7.62	7.62				11.13	15.24
3 1/2	90	101.6	2.11	3.05				5.74	5.74	5.74		8.08	8.08	8.08
4	100	114.3	2.11	3.05				6.02	6.02	6.02		8.56	8.56	8.56		11.13		13.49	17.12
5	125	141.3	2.77	3.40				6.55	6.55	6.55		9.53	9.53	9.53		12.70		15.88	19.05
6	150	168.3	2.77	3.40				7.11	7.11	7.11		10.97	10.97	10.97		14.27		18.26	21.95
8	200	219.1	2.77	3.76		6.35	7.04	8.18	8.18	8.18	10.31	12.70	12.70	12.70	15.09	18.26	20.62	23.01	22.23
10	250	273.1	3.40	4.19		6.35	7.80	9.27	9.27	9.27	12.70	12.70	12.70	15.09	18.26	21.44	25.40	28.58	25.40
12	300	323.9	3.96	4.57		6.35	8.38	9.53	9.53	10.31	14.27	12.70	12.70	17.48	21.44	25.40	28.58	33.32	25.40
14	350	355.6	3.96	4.78	6.35	7.92	9.53		9.53	11.13	15.09		12.70	19.05	23.83	27.79	31.75	35.71
16	400	406.4	4.19	4.78	6.35	7.92	9.53		9.53	12.70	i6.66		12.70	21.44	26.19	30.96	36.53	40.49
18	450	457.2	4.19	4.78	6.35	7.92	11.13		9.53	14.27	19.05		12.70	23.83	29.36	34.93	39.67	45.24
20	500	508	4.78	5.54	6.35	9.53	12.70		9.53	15.09	20.62		12.70	26.19	32.54	38.10	44.45	50.01
22	550	559	4.78	5.54	6.35	9.53	12.70		9.53		22.23		12.70	28.58	34.93	41.28	47.63	53.98
24	600	610	5.54	6.35	6.35	9.53	14.27		9.53	17.48	24.61		12.70	30.96	38.89	46.02	52.37	59.54
26	650	660			7.92	12.70			9.53				12.70
28	700	711			7.92	12.70	15.88		9.53				12.70
30	750	762	6.35	7.92	7.92	12.70	15.88		9.53				12.70
32	800	813			7.92	12.70	15.88		9.53	17.48			12.70
34	850	884			7.92	12.70	15.88		9.53	17.48			12.70
36	900	914			7.92	12.70	15.88		9.53	19.05			12.70
38	950	965							9.53				12.70
40	1000	1016						9.53		12.70
42	1050	1067				12.70	15.88		9.53	19.05			12.70
44	1100	1118							9.53				12.70
46	1150	1168							9.53				12.70
48	1200	1219							9.53			12.70
52	1300	1321
56	1400	1422
60	1500	1524

Range Of Pipes & Tubes

Sr. No.	Material	Size	Sch. & Swg.	Specification
1.	Seamless Pipe	15 mm NB To 300 mm NB	Sch. 5s, 10s, 40s, 80s, 160s, XXS	A-312
2.	Welded (ERW) Pipe	15 mm NB To 300 mm NB	Sch. 5s, 10, 40s & 80s	A-312
3.	Welded (ERW) Pipe	150 mm NB To 600 mm NB	Sch. 5s, 10s, 40s & 80s	A-358
4.	Seamless Tube	6.35 mm OD To 101.6 mm OD	20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg.	A-213
5.	Welded (ERW) Tube	6.35 mm OD To 152 mm OD	20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg.	A-249

Pipes & Tubes Pressure Ratings

Schedule	Size of Pipes & Tubes (inches)	(°F) Temperature
		200	100	300	500	400	600	700	650	750
80	1″	3634	4213	3265	2791	3002	2659	2528	2580	2501
40	1″	2629	3048	2362	2019	2171	1924	1824	1867	1810
40	1.5″	1947	2257	1750	1496	1608	1425	1354	1383	1340
160	1″	5296	6140	4759	4068	4375	3876	3684	3761	3646
160	1.5″	3984	4619	3580	3060	3291	2916	2772	2829	2743
80	1.5″	2744	3182	2466	2108	2267	2009	1909	1949	1889
80	2″	2369	2747	2129	1820	1957	1734	1648	1682	1631
40	2″	1640	1902	1474	1260	1355	1201	1141	1165	1129
40	3″	1558	1806	1400	1196	1287	1140	1084	1106	1072
160	2″	3880	4499	3486	2980	3205	2840	2699	2755	2671
160	3″	3312	3840	2976	2544	2736	2424	2304	2352	2280
80	3″	2202	2553	1979	1691	1819	1612	1532	1564	1516
80	4″	1909	2213	1715	1466	1577	1397	1328	1355	1314
40	4″	1321	1531	1187	1014	1091	967	919	938	909
40	5″	1158	1342	1040	889	956	847	805	822	797
160	4″	3106	3601	2791	2386	2566	2273	2161	2206	2138
80	5″	1709	1981	1535	1312	1411	1250	1189	1213	1176
160	5″	2945	3414	2646	2262	2433	2155	2049	2091	2027
80	6″	1650	1913	1483	1267	1363	1208	1148	1172	1136
40	6″	1052	1219	945	808	869	770	732	747	724
40	8″	926	1073	832	711	765	678	644	657	637
160	6″	2836	3289	2549	2179	2343	2076	1973	2014	1953
160	8″	2738	3175	2460	2103	2262	2004	1905	1944	1885
80	8″	1459	1692	1311	1121	1205	1068	1015	1036	1005
80	10″	1388	1609	1247	1066	1147	1016	966	986	956
40	10″	840	974	755	945	694	615	584	596	578
160	10″	2714	3147	2439	2085	2242	1986	1880	1927	1868

OD (in mm) & WT (in mm) of Pipes & Tubes

Nominal size [inches]	Outside diameter [inches]	Outside diameter [mm]	Wall thickness [inches]	Wall thickness [mm]	Weight [lb/ft]	Weight [kg/m]
1/2	0.840	21.3	0.083	2.11	0.68	1.00
3/4	1.050	26.7	0.083	2.11	0.87	1.29
1	1.315	33.4	0.109	2.77	1.41	2.11
1 1/4	1.660	42.2	0.109	2.77	1.82	2.71
1 1/2	1.900	48.3	0.109	2.77	2.1	3.13
2	2.375	60.3	0.109	2.77	2.66	3.96
2 1/2	2.875	73.0	0.120	3.05	3.56	5.29
3	3.500	88.9	0.120	3.05	4.37	6.50
3 1/2	4.000	101.6	0.120	3.05	5.01	7.46
4	4.500	114.3	0.120	3.05	5.66	8.42
5	5.563	141.3	0.134	3.40	7.82	11.64
6	6.625	168.3	0.134	3.40	9.35	13.91
8	8.625	219.1	0.148	3.76	13.50	20.10
10	10.750	273.1	0.165	4.19	18.79	27.96
12	12.750	323.9	0.180	4.57	24.34	36.22
14	14.000	355.6	0.188	4.78	27.97	41.62
16	16.000	406.4	0.188	4.78	32.02	47.65
18	18.000	457.0	0.188	4.78	36.05	53.65
20	20.000	508.0	0.218	5.54	46.42	69.09
22	22.000	559.0	0.218	5.54	51.14	76.10
24	24.000	610.0	0.250	6.35	63.93	95.13
30	30.000	762.0	0.312	7.92	99.60	148.22
